Strip Heater

SmithHeat Strip Heaters are manufactured to your custom specifications. Our strip heaters feature a high temperature oxidation metal sheath and high grade mica insulation resistant to moisture and high temperatures. Nickel/Chromium resistance wire evenly wound provides for uniform and reliable heat distribution.

Different Kinds of Lead Out:-

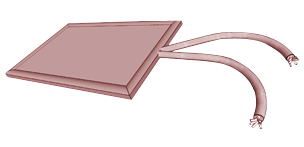

lo1 LO-1
  • Fiberglass Leads out same end center.
  • 10" leads standard.
  • Leads rated to 850°F
lo2 LO-2
  • Leads out same end edge
  • 1/2” sleeving at exit
lo3 LO-3
  • Leads out opposite ends
  • 1/2” sleeving at exit

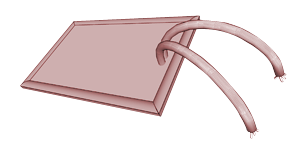

lo4 LO-4
  • Leads out at top of heater
  • Brass eyelet where leads exit sheath
  • 1/2” sleeving at exit
  • Stainless Steel Braid offers a combination of flexibility and abrasion protection
  • Leads out same end center
  • Specify Braid length
  • Leads are 2” longer than braid
lo6 LO-6
  • Leads out same end edge
lo7 LO-7
  • Leads out opposite ends
lo8 LO-8
  • Leads out top of heater
  • Brass eyelet where leads exit the sheat
lo9 LO-9
  • Post terminals vertical
  • Minimum width 1.5”
  • Marathon standard location
lo10 LO-10
  • Post terminals parallel
  • Minimum width 1.5"
lo11 LO-11
  • Post terminals opposite ends
  • Minimum width 1”
  • 1/2” sleeving at exit
  • Stainless Steel Conduit offers the outmost abrasion protection
  • Leads exciting out top side of sheath
  • Leads are 2” longer than conduit
